Product Overview:

The SUNDOM brand has been dedicated to the research and manufacturing of off-road tires for a long time. Its products have been exported to regions such as Southeast Asia, Africa, the Middle East, and South America, and have established a good reputation in the global industrial tire market. The SD101 series of solid tires is one of the main products developed by SUNDOM for industrial material handling scenarios. The 5.00-8 specification is suitable for forklifts, aerial work platforms, and various industrial vehicles. With excellent wear resistance and load-bearing capacity, it has become the preferred matching tire for many overseas customers.

Product technical features:

Specification parameter:

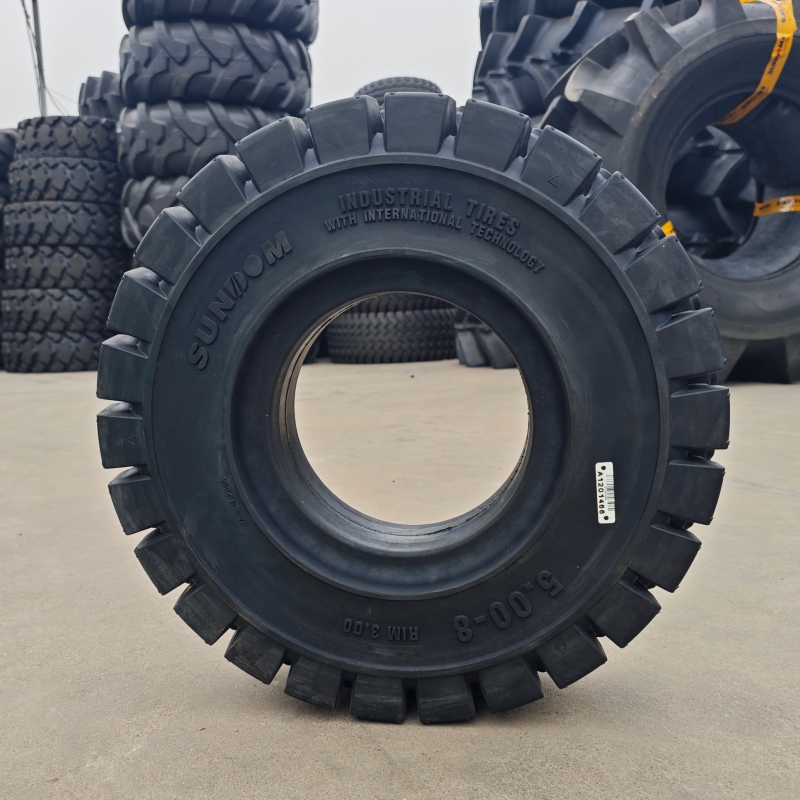

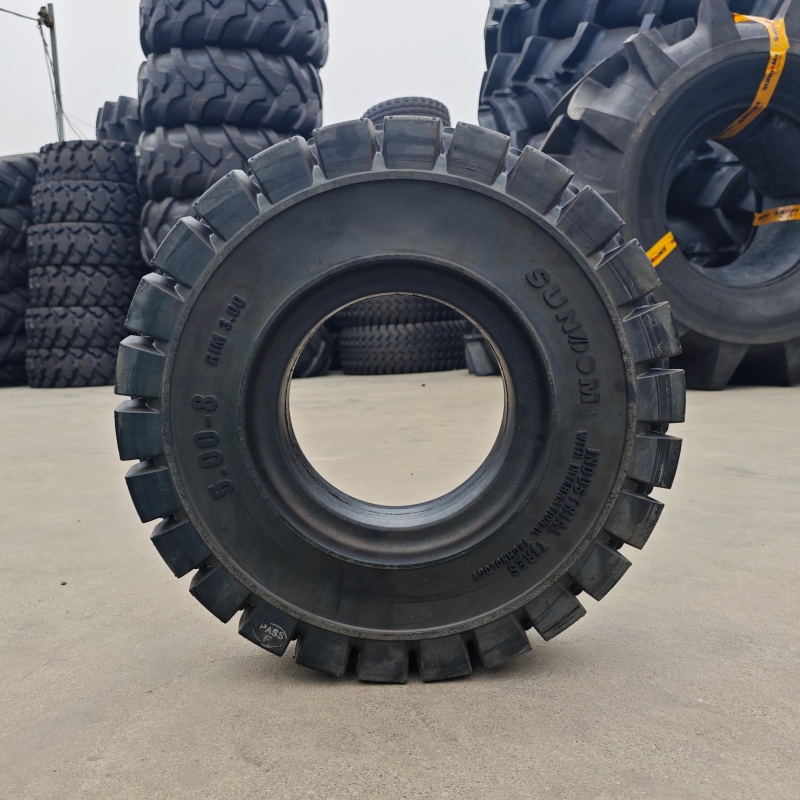

The 5.00-8 specification is compatible with 3.00 standard wheel rims. The outer diameter of the tire is approximately 469mm, and the section width is about 126mm. It features a standard flange design, is easy to install, and has good compatibility with mainstream industrial vehicle wheel rim systems.

Three-layer composite structure design

The SD101 adopts an advanced three-stage composite structure design. The tread, carcass and base layers all use rubber formulations with different properties. This structure not only ensures high wear resistance but also effectively enhances the handling stability and steering response capability of the tire, especially when operating on hard and smooth surfaces.

Load-bearing capacity:

Under static conditions, the single-wheel load-bearing capacity can reach 1645kg; at a driving speed of 10km/h, the load-bearing capacity of the driving wheels is 1210kg, and that of the steering wheels is 970kg. At a driving speed of 16km/h, the load-bearing capacity of the driving wheels is 1175kg, and that of the steering wheels is 880kg. This can meet the daily operation requirements of medium-load industrial vehicles.

Applicable scenarios:

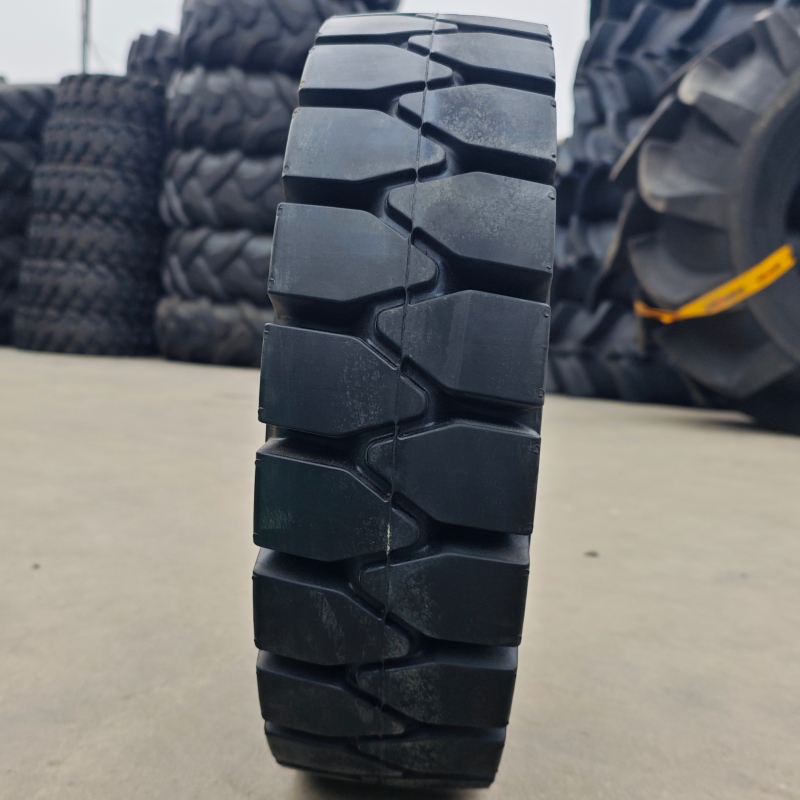

The SD101 tread design takes into account both grip and rolling resistance optimization, and is suitable for indoor warehouses, logistics centers, and other hard and smooth ground operation environments. For forklift operation conditions that require frequent steering, starting and stopping, SD101 can provide stable support and good control response.

International market adaptation advantage:

SUNDOM tires have long been exported to regions such as Southeast Asia, Africa, the Middle East, and South America, and have accumulated rich experience in serving these regional markets. In response to the actual working conditions of these markets, SD101 has been optimized in the following aspects:

· Heat resistance: For the high-temperature environments in tropical regions such as the Middle East and Africa, the rubber formula has been optimized for heat resistance aging, delaying the performance degradation of the tires under high-temperature conditions.

· Road condition adaptation: In response to the uneven ground flatness in some areas of warehouses, the three-layer structure design of SD101 provides sufficient rigidity while retaining a certain level of vibration damping, reducing the fatigue of drivers during long operations.

· Long lifespan and economy: The high-mobility tire tread formula extends the tire replacement cycle, reducing the single-kilometer usage cost for end users. This feature is particularly valued in price-sensitive emerging markets.

Quality Assurance:

SUNDOM has established a complete quality control system, strictly adhering to international standards from raw material procurement to product inspection. The SD101 series has undergone multiple durability and load-bearing performance tests to ensure the stable and reliable quality of the products during export transportation and overseas use.
