NON-HIGHWAY TYRE SUPPLIER

Agricultural Tire Of Australia Market

Update Time: 20 May 2020

Current main brands in the Australian Market
Tier 1 :Michelin ,firestone and goodyear
Tier 2 :BKT,Havest ,MAXAM
Tier 3 :Linglong ,westlake
Products & Machinery Applications

Products

Machinery Applications

Bias Ply Steer

Grain Bin

Flotation

Harvester

Bias Ply Tractor

Header

Bias Ply haulage

Sprayer

Radial Tractor

Spreader

X-Load Tractor

Sugar Cane

High Speed Tractor

Tractor

Current Patterns in the Australian Market

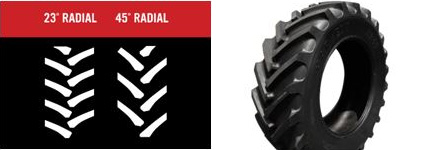

There are 2 major Lug angles in the Australian marketplace,
23-degree lug & 45-degree lug

This is something we will have to look at very carefully as both products have advantages over each other.
For the world market the 23-degree lug is better suited as it has been performing well in Europe and the USA for a number of years. Most products coming into Australia are currently running a 23-degree lug.
For the Australia market 45-degree lug has been outperforming the 23-degree lug in a lot of areas.  Mainly due to our soil conditions .
With the 45-degree lug you get more lugs on the tyre which gives you less soil compaction and increased traction. Smoother ride at higher pressures.
Agriculture Season in Australia

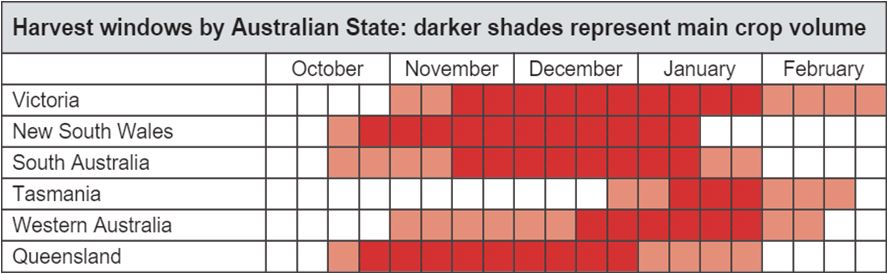

There are 3 main Agriculture seasons in Australia, Seeding & sowing, Spraying and Harvesting. This graph shows each state harvest season. Which means that we need to make sure our stock ordering is right, or we can sit on dead stock for 6-9 months.
Australia`s soil conditions
Australia has one of the most diverse soil conditions in the world, From the sandy soil in Western Australia to the Black soil in far North Queensland.
Original equipment player in the Australian market
O/E Market
In the Australian original equipment marketplace, there are 4 main players. Harvest Tyres being the biggest with close to 65% of this market share. Titan main focus in this area is being able to supply wheel and tyre packages to O/E builders. Which has given them their own niche market.

Warranties offered in the Australian marketplace
Australian farmers are looking for a tyre that the manufacturer will stand behind in the Australian marketplace. This is due to a lot of wholesalers not standing by their product when things go wrong. The average life span for an Agricultural tyre in Australia is between 5 to 7 years depending on climate and seasonal change. This also helps when planning new builds, We can look at the number of new machines that have been brought into Australia each year and plan a 5 year build around them.

Agricultural Tyre Range

Size

Speed

Load Index

Size

Speed

Load Index

65 SERIES



70 SERIES



440/65R24

65

138A8/135D

320/70R24

50

116A8116B

480/65R24

65

143A8/140D

360/70R24

50

122/A8/122B

440/65R28

65

141A8/138D

380/70R24

50

125A8/125B

480/65R28

65

145A8/142D

420/70R24

50

130A8/127B

540/65R28

65

152A8/149D

380/70R28

50

127A8/127B

600/65R28

65

157A8/154D

420/70R28

50

133A8/127B

540/65R30

65

153A8/150D

480/70R28

50

151A8/151B

800/65R32

65

185A8/181D

480/70R30

50

152A8/149B

540/65R34

50

156A8153D

480/70R34

50

146A8/143B

540/65R38

65

162A8/159D

480/70R34(X-Load)

40

155A8

600/65R38

65

162A8/159D

520/70R38

50

150A8/147B

650/65R38

65

162A8/159D

580/70R38

50

155A8/155B

650/65R42

50

170A8/168B

710/70R38

50

179A8/155B




800/70R38 (X-Load)

65

181B/179D




620/70R42

50

166A8/166B




710/70R42

50

179A8/173B


IF & VF Agricultural Tyres
Definitions
IF is abbreviation for Increased Flexion. Tire can carry 20% more load than standard tire at same air pressure.
VF is the abbreviation for Very High Flexion. Tire can carry 40% more load than standard tire at same air pressure.
Example
In other words, if you are hypothetically carrying 10,000 lbs. at 100 PSI:
IF tire will carry same 10,000 lbs. as standard tire, at approximately 20% less air pressure or 80 PSI.
VF tire will carry same 10,000 lbs. as standard tire, at approximately 40% less air pressure or 60 PSI.
Keeping in mind PSI is pounds per square inch being transmitted thru tire to the ground, the pressure reduction is dramatic.
How
So, why can an IF or VF tire carry same load with less air pressure? Answer is highly technical sidewalls are designed to carry some of the load, whereas standard radial tires carry entire load with air pressure.
Benefits
What are other benefits of running IF VF lower air pressure tires? Larger footprint. Imagine what your car tire would look like of you took air pressure down 40% from 35 psi to 21 psi….the contact patch or footprint would grow dramatically. What’s bad for car tires (low air pressure) is good for Ag tires.
Larger footprint created from lower air pressures also provides:
Better traction with more pulling lugs on the ground
Reduced fuel consumption with less slip.
Better flotation with larger contact patch.
In sum, lower inflation pressure in the world of Ag tires can create a huge host of benefits!
Agricultural Trade Shows in Australia.

Agquip is Australia largest agricultural show. Visiting Agquip this year would give you a better understanding of the agricultural market in Australia.
https://ruralpressevents.com.au/agquip/home
Background
AgQuip field days, have been running since 1973 and is located on a permanent, purpose-built site, eight kilometres west of Gunnedah, New South Wales. The event attracts over 100,000 visitors each year, over the three-day period.
Showcasing over 3,000 products and services aimed at farming professionals, the event provides an excellent opportunity for businesses to promote their brand, generate sales and connect with their customers.
